High Pressure Coolant Systems
MC-20S
Features:
■ Modular PCB, easy for maintenance.
■ Intuitive control panel, easy for operation.
■ 3 sets of M code output.
■ Compact size with small footprint.
Specifications
| Fluid type | Oil base coolant (viscosity 15-32cst) |
|---|---|
| Control panel | PCB Board |
| Max working pressure | 40 Bar / 580 PSI |
| Max flow rate | 20 Liter/min |
| Number of ports | 3 (Standard) |
| Filtration | 5µ Single Filter (Filter Bag) |
| Tank capacity | N/A |

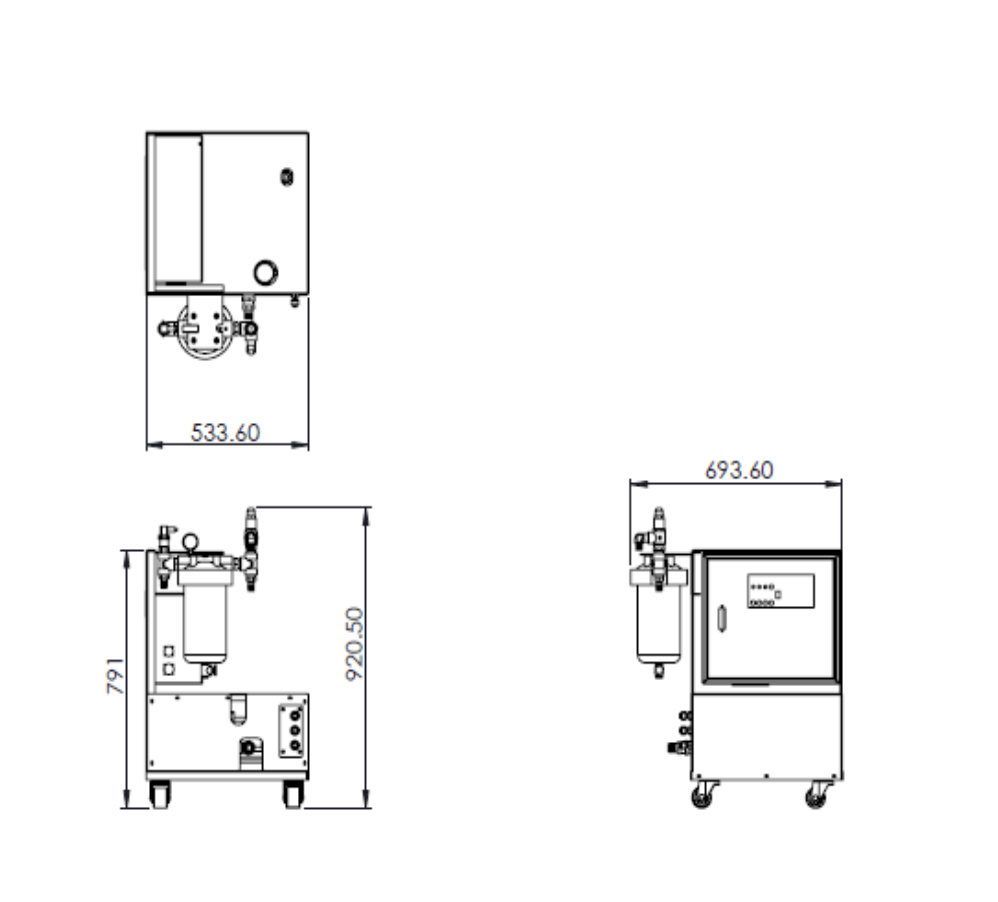

| Dimension (D*W*H) | 532 x 695 x 943 mm |
| Weight | 98 kg |
